K845

 Material

Material

NBR 80 Shore

Introduction


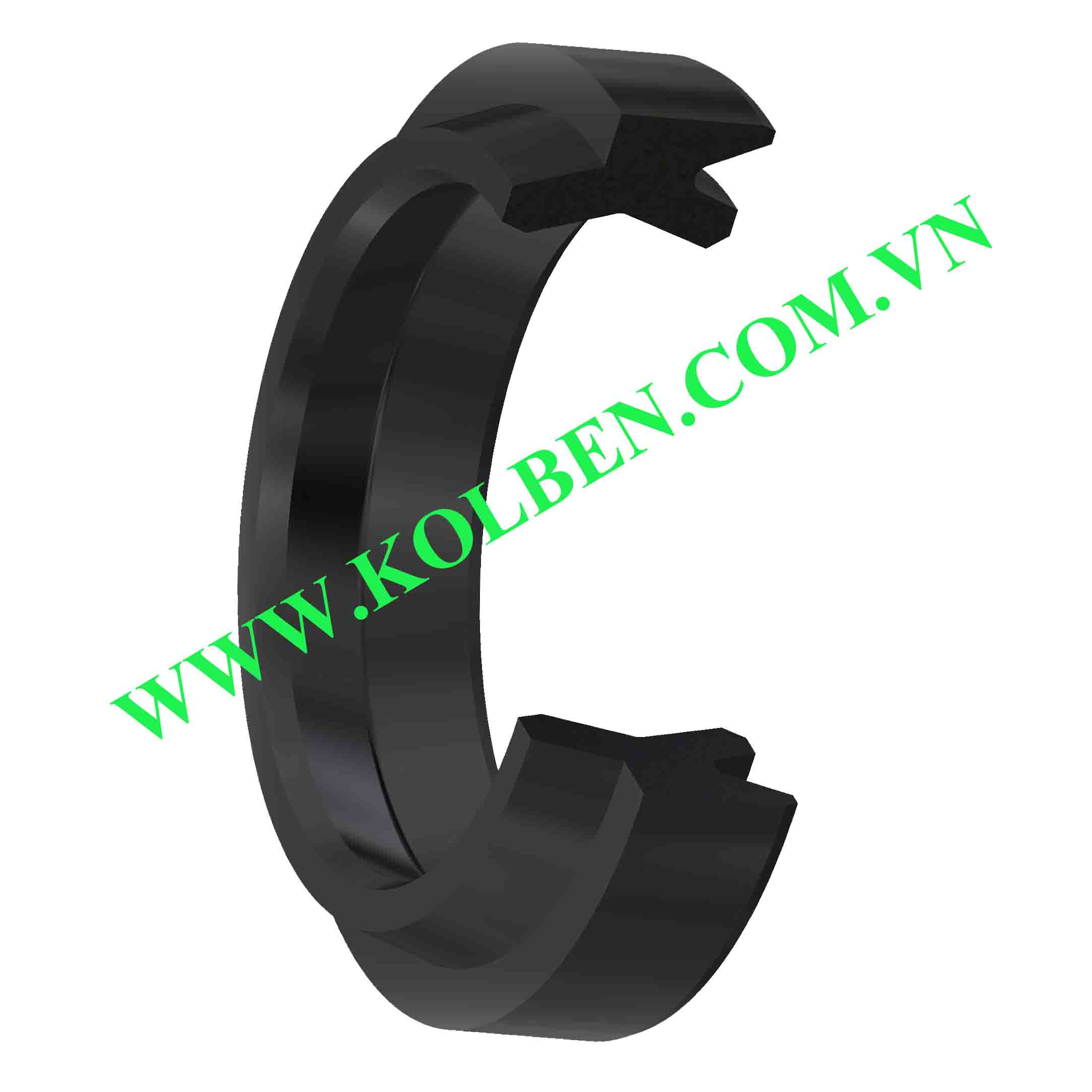

K845 is a standard dust wiper. It is used for rod seals. K845 is simple dust seal with sealing system. It is including 2 lips in order to exclude dust and moisture from entering into cylinder and collect passing fluid from rod seal.

K845 is a double-acting wiper manufactured from tough, wear resistant. Its robust outer wiper lip excludes contaminants from the hydraulic system, and the internal wiper lip collects fluids that bypass the primary rod seal, to give dry rod performance.

 The K845 profile can be used as a heavy to light duty wiper. When used in high pressure applications in conjunction with the proper KOLBEN rod seals, the K845 compliments the sealing system by providing an additional beveled sealing lip, yielding excellent film-breaking and the driest rod sealing available. These dual acting features also enable it to be used by itself in low pressure applications as both the rod seal and the wiper. Knife-trimmed sealing lips ensure the best possible film breaking.

The wiper is precision moulded in high performance for maximum wear resistance, and is designed to exclude dirt and moisture from entering the cylinder and to collect traces of fluid passing the rod seal.



Material

Power-transmission fluid

Temperature ⁰C

Speed

Pressure

Max. Gap F





NBR

Mineral Oil

 -45  -  +110

≤  1,0m/s



F  ≤   0,6 mm

HFC Water Glycol

-30  -  +60





F  ≤   0,5 mm

HFA 5/95 Water base fluid, Water

+5  -  +60





F  ≤   0,4 mm









Chamfers & Rad (mm)



Tolerance

Surface Finishing

S  ≤

4

5

7.5

10

12.5

15

20



Rod

Piston

µm Ra (for rod only) µm Rt

C  ≥

3

3.5

5

6.5

7

8

10

ø d

f9

js11

0,1-0,4

≤   4

r1  ≤

0.2

0.4

0.8

0.8

1.2

1.6

1.6

ø D

Js11

H9

≤  1,6

≤  10

r2  ≤

0.4

0.8

1.2

1.2

1.6

2.4

2.4

L

+0,25  0

+0,25   0

≤  3,2

≤  16




NAME

MODEL

MATERIAL

d(f8)

D(H10)

D1(H11)

h(-0/+0.2)

H

K845

K845 14*22*4.8/7

PU

14

22

17

4.8

7

K845

K845 18*26*4.8/7

PU

18

26

21

4.8

7

K845

K845 20*28*4.8/7

PU

20

28

23

4.8

7

K845

K845 22.4*30.4*4.8/7

PU

22.4

30.4

25.4

4.8

7

K845

K845 25*33*4.8/7

PU

25

33

28

4.8

7

K845

K845 28*36*4.8/7

PU

25

36

28

4.8

7

K845

K845 30*38*5.8/8

PU

28

38

31

5.8

8

K845

K845 31.5*39.5*5.8/8

PU

31.5

39.5

34.5

5.8

8

K845

K845 32*40*5.8/8

PU

32

40

35

5.8

8

K845

K845 35*43*5.8/8

PU

35

43

38

5.8

8

K845

K845 35.5*43.5*5.8/8

PU

35.5

43.5

38.5

5.8

8

K845

K845 38*46*5.8/8

PU

38

46

41

5.8

8

K845

K845 40*48*5.8/8

PU

40

48

43

5.8

8

K845

K845 45*53*5.8/8

PU

45

53

48

5.8

8

K845

K845 50*58*5.8/8

PU

50

58

53

5.8

8

K845

K845 53*61*5.8/8

PU

53

61

56

5.8

8

K845

K845 55*63*5.8/8

PU

55

63

58

5.8

8

K845

K845 56*64*5.8/8

PU

56

64

59

5.8

8

K845

K845 60*68*5.8/8

PU

60

68

63

5.8

8

K845

K845 63*71*5.8/8

PU

63

71

66

5.8

8

K845

K845 65*73*5.8/8

PU

65

73

68

5.8

8

K845

K845 70*80*6.8/10

PU

70

80

73

6.8

10

K845

K845 75*85*6.8/10

PU

75

85

78

6.8

10

K845

K845 80*90*6.8/10

PU

80

90

83

6.8

10

K845

K845 85*95*6.8/10

PU

85

95

88

6.8

10

K845

K845 90*100*6.8/10

PU

90

100

93

6.8

10

K845

K845 95*105*6.8/10

PU

95

105

98

6.8

10

K845

K845 100*110*6.8/10

PU

100

110

103

6.8

10

K845

K845 110*125*8.5/13

PU

110

125

113

8.5

13

K845

K845 112*122*6.8/10

PU

112

122

115

6.8

10

K845

K845 120*130*6.8/10

PU

120

130

123

6.8

10

K845

K845 125*138*7.8/11

PU

125

138

128

7.8

11

K845

K845 130*143*7.8/11

PU

130

143

133

7.8

11

K845

K845 136*149*7.8/11

PU

136

149

139

7.8

11

K845

K845 140*153*7.8/11

PU

140

153

143

7.8

11

K845

K845 145*158*7.8/11

PU

145

158

148

7.8

11

K845

K845 150*163*7.8/11

PU

150

163

153

7.8

11

K845

K845 160*174*7.8/11

PU

160

174

163

7.8

11
